The SWITCH IeV series marks a revolutionary leap in the eLCV segment, poised to transform the landscape of mid and last-mile transportation. These remarkable vehicles serve as a testament to SWITCH’s global expertise and unwavering commitment to electrifying the logistics sector.
Built on a high-voltage, modular, and adaptable architecture, the Switch IeV series sets new standards for performance and comfort. It comes equipped with the proprietary connected technology solution ‘SWITCH ION,’ which enables remote real-time diagnostics and monitoring services. Additionally, its spacious cargo area accommodates containers of up to 340 cubic feet, rendering it a versatile and efficient choice for a wide array of transportation needs.
The IeV series vehicles have been meticulously designed to prioritize driver comfort. Featuring a dual-tone interior and clutch less operation, they ensure a fatigue-free experience behind the wheel. The sliding and reclining seat, coupled with a spacious and quiet cabin, takes care of all-day comfort for the driver. The spacious D+2 seating arrangement, foldable parking brake, and wider opening door enhance the co-driver’s comfort as well.
With an industry-leading turnaround time, the Switch IeV is here to revolutionize the logistics landscape of the future. It represents a significant step forward in the world of last-mile logistics, promising a more efficient and sustainable future for urban mobility

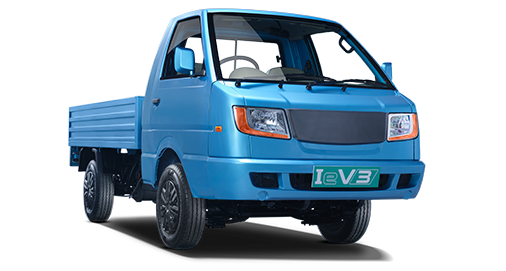

Model Details | IeV 3 |
GVW (kg) | 2590 |
Payload (kg) | 1200 (FSD) |
Wheelbase (mm) | 2510 |
Cargo body dimension-FSD | 8.6 ft X 5.3 ft X 1.4 ft |
Container suitability | 270 CFT |
EV Power Train Details | |
Battery (kWh) | LFP, 25.6 |
Peak power (kW) | 40 |
Peak torque (Nm) | 190 |
Performance | |
Range (km) | 120 |
Max. speed | 70 |
Gradeability (%) | 22 |
Charger Details | |
AC charging type | Standard - Type 2 AC |
DC charging type (Optional) | Optional - CCS2 (AC & DC) |
Charging Time | |
AC charging | 6 hours (Approx) - 15A (3.3 kW charger) |
DC charging | Optional - 60 mins - 30kW Charger |
Others | |
Seating capacity | D+1 |
Ground clearance (mm) | 177 |
Steering | Electric power steering |
Tyre - Front & Rear | 185 R14 LT 8 PR |
Front suspension | Rigid Susp. + Parabolic leaf |
Rear suspension | Rigid Suspension |
Brakes | Disc/ Drum |
Warranty - vehicle | 3 yrs/ 150K km* |
Warranty - battery | 5 yrs/ 150K km* |
Model Details | IeV 4 |
GVW (kg) | 3490 |
Payload (kg) | 1700 (FSD) |
Wheelbase (mm) | 2590 |
Cargo Body Dimension-FSD | 9.7 ft X 5.7 ft X 1.6 ft |
Container Suitability | 340 CFT |
EV Power Train Details | |
Battery (kWh) | LFP, 25.6 |
Peak Power (kW) | 40 |
Peak Torque (Nm) | 190 |
Performance | |
Range (km) | 120 |
Max. Geared speed | 80 |
Gradeability (%) | 23 |
Charger Details | |
AC charging type | Standard - Type 2 AC |
DC charging type (Optional) | Optional - CCS2 (AC & DC) |
Charging Time | |
AC charging | 8 hours (Approx) - 15A (3.3 kW charger) |
DC charging | Optional - 75 mins - 30 kW Charger |
Others | |
Seating Capacity | D+2 |
Ground Clearance (mm) | 206 |
Steering | Electric Power Steering |
Tyre -Front & Rear | 7.00 R15 LT 12 PR Radial |
Front Suspension | Rigid Susp. + Parabolic leaf |
Rear Suspension Rear | Semi elliptical Leaf |
Brakes | Disc/ Drum |
Warranty - Vehicle | 3 yrs/ 150K km* |
Warranty - Battery | 5 yrs/ 150K km* |
Dual tone Dashboard
Electric Power Steering
Hill hold Assist
Spacious cabin with D+2 Seating
Sliding & Reclining Driver Seat
2 USB Port (Mobile Charging Point)
Lockable glove Box
Reverse park alert
Provision (Music/Radio /Aux/USB*)
